SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine

  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
  • SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine
Place of Origin CHINA
Brand Name BEYOND
Certification ISO
Model Number BYNNX
Minimum Order Quantity 1
Price USD 150000-250000 PER SET
Packaging Details WOOD CASE
Delivery Time 70DAYS
Payment Terms L/C, T/T
Supply Ability 12 SETS PER YEAR

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MATERIAL SS304 OR SS316L CAPACITY 2TPH-10TPH
MANUFACTURING TIME 70 DAYS Product Name Powder Blender Machine
High Light

wheat powder mixing blender machine

,

10TPH powder mixing blender machine

,

10TPH dry powder mixer machine
Leave a Message
Product Description

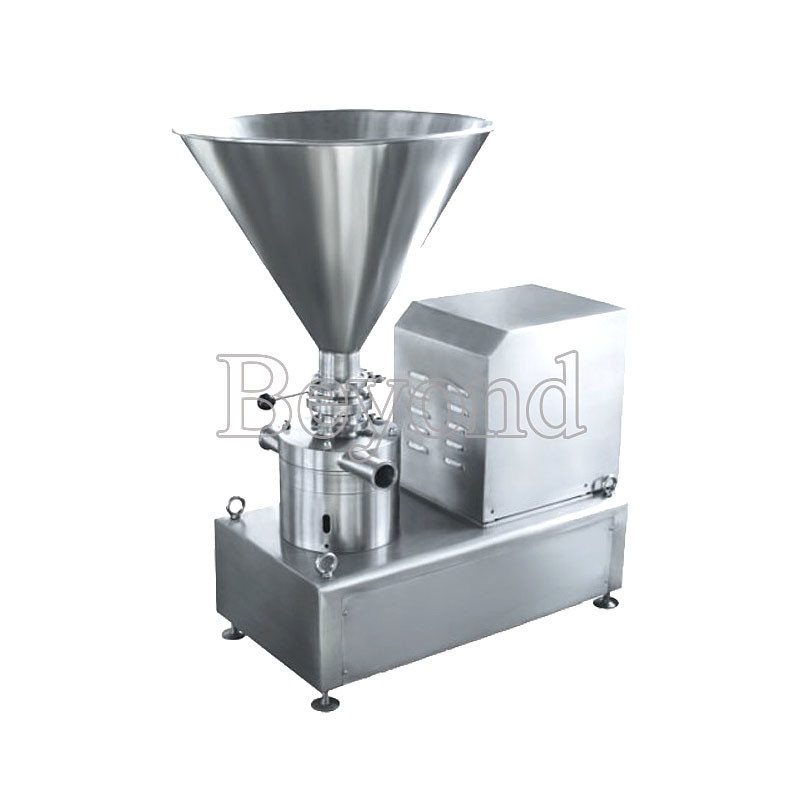

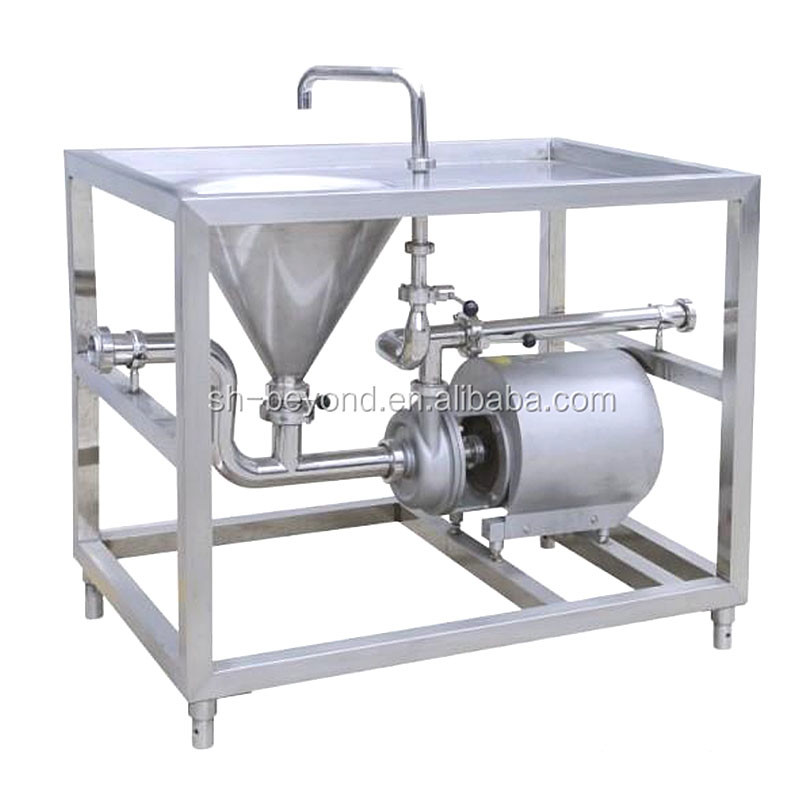

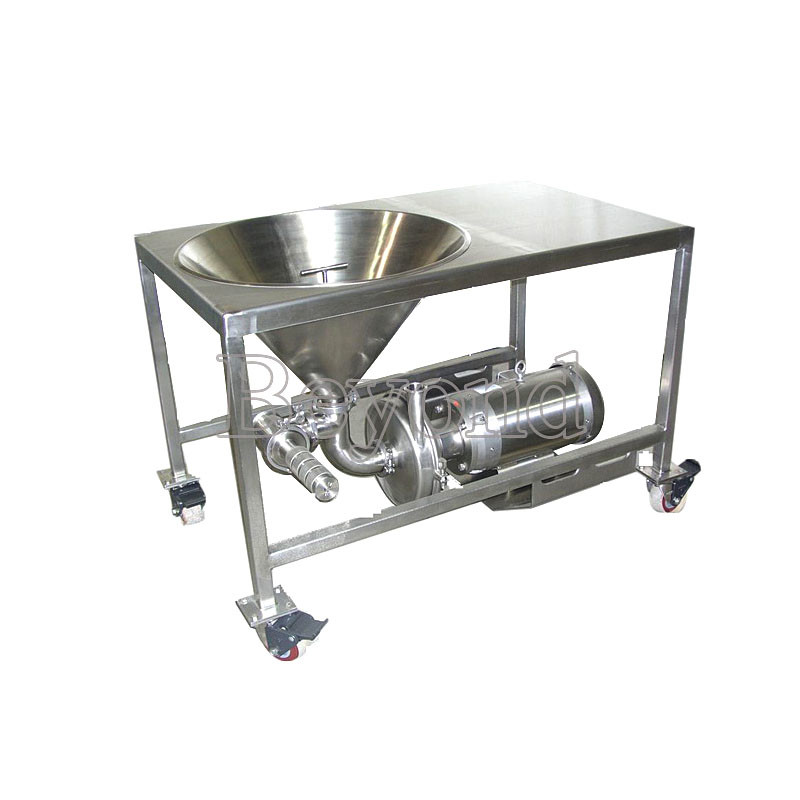

New design mix the wheat powder with water powder blender machine

SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine 0



Description of water and powder blender:
mainly used to hydration for milk powder(mix the powder with water); mix the coco powder to the milk; make whey solution; mix the wheat powder with water; produce salt water; pre-blend the yogurt or other dairy products etc.
Production capacity: 5T/H-20T/H
Model

Flow rate

(T/h)

 Material dissolving capactiy Technical data External size(cm) (L×W×H)

Power

(KW))
SFHE-10 10 800(Kg/H) SUS304 material, hard mechanical seal, outlet/inlet adapt SMS standard 550*380*960 3
SFHE-20 20 1300(Kg/H) 760*400*1015 5.5

SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine 1

SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine 2SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine 3SMS Standard SS316L Dry Wheat Powder Mixing Blender Machine 4

The final product can be pasteurized milk, yogurt (with flavored), cheese, butter, ice cream, condensed milk, powder milk etc.



Capacities can be 500L to 10,000 L per day!



Please have a check of below technical specifications:



FLOW NO. NAME MAIN TECHNOLOGY PARAMETER UNIT QTY
A Hot-water unit
A-1 Hot water tank SUS304,double layers, PU insulation, coil pipe heating, air-tight manhole, water inlet, digital thermometer, glass level, ladder, adjustable legs set 1
A-2 Water Pump SUS304,pump lift 24M,machinical sealing, inner polished set 1
A-3 Temperature control system With temperature automatic control to control the whole system set 1
B Dissolving unit
B-1 Emulsifying tank Stainless steel SUS304,square shape, double layers, with PU insulation, CIP cleaning ball, air-tight manhole, high speed shear -cut at the top,1400 rounds per minute, digital thermometer, adjustable legs set 2
B-2 Milk Pump SUS304,pump lift 24M,machinical sealing, inner polished set 1
B-3 Double pipe filters Stainless steel SUS304,double pipe, stainless steel filter,100 mesh set 1
B-4 Operate platform Stainless steel, SUS304, with handrails and ladders set 1
C Milk standardization unit
C-1 Blending tank SUS304,doubel layers, with off center vertical agitator, CIP cleaning ball, manhole, digital thermometer, glass tube gauge, simple valve, ladders, adjustable legs, set 2
C-2 Milk pump SUS304,pump lift 14M,mechanical
sealing ,inner polished		 set 1
C-3 Double pipe filters Stainless steel SUS304,double pipe, stainless steel filter,100 mesh set 1
D Homogenize and pasteurizing unit
D-1 Plate pasteurizer Stainless steel SUS304,30℃ inlet, temperature automatic control, pasteurize parameters:95℃, 300 seconds, 40-45℃ outlet set 1
D-2 Homogenizer Work pressure 25Mpa,inclduing the start cabinet set 1
D-3 Holding tank SUS304, keep the temperature for 300s set 1
E Fermentation unit
E-1 Fermentation tank Stainless steel SUS304,three layers, dimple pad jacket, insulation with PU material, central agitator with double blend speed :15 round per minute and 30 round per minute inlet and outlet, CIP cleaning ball, breath valve, digital thermometer, air-tight manhole, sight glass, simple valve, adjustable legs set 5
E-2 Rotor pump Stainless steel SUS304,food grade, with stepless speed adjustable set 1
E-3 Plate cooler Stainless steel SUS304,large gap, Tm=30℃,with stepless speed adjustable set 1
E-4 Operate platform Stainless steel,SUS201, with handrails and ladders set 1
F Filling unit
F-1 High level tank Stainless steel SUS304,doubel layers, CIP cleaning ball, manhole,digital thermometer, simple valve, adjustable legs, set 1
F-2 Plastic cup filler Capacity: 4000pouch/h, filling volume: 250g/pouch, filling precision: ±1.5% set 2
G CIP unit
G-1 Semi-auto CIP system SUS304, temperature is automatic controlled, consist of 3 tanks, double cleaning circuits, acid tank, alcali, hot water tank, 2000L each tank, double layer with PU insulation, coil pipe inside of tank for heating, with CIP forward pump, 20T/H, pump head is 24m, with acid/alkali concentrate adding system set 1
G-2 Return Pump SUS304,pump lift 24M,mechanical sealing, inner polished set 4





Achieve trouble free powder handling
The powder valve is unique to the high shear mixer. If the vacuum is lost for any reason, it will close immediately. This eliminates the risk of backflow to the powder system and prevents clogging, thereby stopping production.
