Complete Soya Milk Production Line Making Machine

Place of Origin China
Brand Name BEYOND
Certification ISO9001
Model Number BY-2T
Minimum Order Quantity 1 set
Price USD 100000-600000USD/ set
Packaging Details standard exporting packing
Delivery Time 50-80working days
Supply Ability 100sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Cow Milk, Kamel Milk, Buffalo Milk ,etc End Product Pasteurized Milkyogurt/ Cheese/cream/ Butter
Processing Capacity 2000LPH-10000LPH Control Type Semi-automatic Or Full Automatic
Package Type Plastic Pouches/ Bottles/ Cups Product Name Soy Milk Production Line
Blending System Full-auto Blending System CIP Full-auto CIP System
High Light

10000LPH soya milk making machine

,

10000LPH soya milk production line

,

Complete soya milk making machine

Leave a Message
Product Description

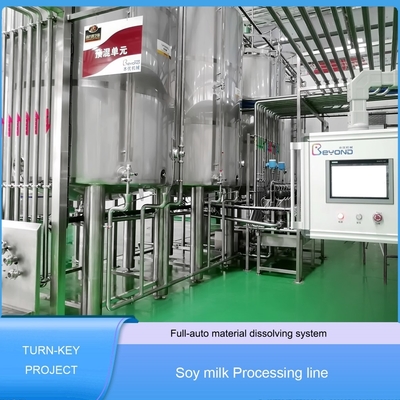

Complete soya milk production line/soya bean milk processing plant



Complete Soya Milk Production Line Making Machine 0



Centralized CIP cleaning device
High performance centralized CIP cleaning device designed for large factories.
The device is composed of multiple cleaning lines to optimize the cleaning cycle, time and recovery stage.
Automatic device with centralized control.


Software development of programmable logic controller
Our PLC software is developed to control machines and food processing plants. We provide reliable, safe and easy to understand software. All software applications are developed in full compliance with existing laws. We have rich experience in PLC, and our research activities make us always meet the market demand.
We have developed software to control food processing, mainly including:
Receiving and storage of milk
Heat treatment of food
Yogurt production line (beverage, frozen and stirred yogurt, white and / or with fruit)
Cheese making (soft, hard, stretch curd cheese)
Sugar dissolution line and dosing system of various components
Syrup room
Vegetable milk (soybean, rice, oats) extraction line
Freight and insurance shall be paid to the cleaning line at the designated destination
Food processing line
Man machine interface monitoring system


In the current production system, human-computer interaction is a key point. Our software acts as a human-machine interface (HMI). Through this panel, the operator can control all production stages at any time. Ensure full operator control of the system by displaying operating parameters (close / open valves, run / stop motors) and field instrument data (such as temperature, pressure, flow, etc.). A series of visual or auditory information, control and test actions can achieve complete control of the production line.



Complete Soya Milk Production Line Making Machine 1

The description for the soy milk plant:
Complete milk production line to produce soy milk products; like soy milk and soy yogurt etc.

Complete Soya Milk Production Line Making Machine 2

Usage:
Applicable for large milk collection center, or for milk outdoor storage at large milk production plant; also used at other food and pharmacy factory for storage of liquid product.This equipment is equipped with cleaning system, agitator, sight and view devices, also have attachments of thermometer and level indication meter.



Complete Soya Milk Production Line Making Machine 3

Usage:
This machine stands between the pasteurizer and the UHT, can be used for PET hot filling or roof shape filling sterilize.
Full automatic control: UK Spirax Sarco steam pressure reduce valve, German Burkert or Spirax Sarco temperature control system, German Labom temperature transducer, Anthone temperature recorder without paper, South hot water pump, Siemens PLC full automatic control with touch screen, the precision of temperature control is ±0.5 degree.
Semiautomatic control: UK Spirax Sarco steam pressure reduce valve, German Burkert or Spirax Sarco temperature control system, German Labom temperature transducer, Anthone temperature recorder without paper, South hot water pump, Siemens LOGO control, the precision of temperature control is ±0.5 degree.

Complete Soya Milk Production Line Making Machine 4









End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:



Equipment list of 25T/D DAIRY PRODUCTION LINE
(pasteurized milkyogurtcheesecreambutter)
NO. NAME MAIN TECHNOLOGY PARAMETER
1 MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
2 electron pound scale maximum weighing 500KG
3 milk weighing tank made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
4 milk acceptor SUS304 stainless steel,single layer,CIP cleaning ball
5 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
6 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
7 dish separator auto residue discharge
8 chiling tank SUS304 stainless steel,alveolate jacket,attached with compressor
9 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
10 PREPARING UNIT
11 blending tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
12 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
13 mini set of plate-type heat exchanger SUS304 stainless steel,two stages,
14 high speed emulsification tank SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
15 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
16 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
17 sterilizing,homogenizing unit
18 UHT sterilizer tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
19 high pressure homogenizer 40MPa,(starting box included)
20 temperature holding SUS304,holding 300S
21 distributing plate SUS304,3 holes
22 cheesebutter processing unit
23 bufferying tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
24 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
25 cream seperator
26 bufferying container SUS304,with cover
27 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
28 butter-churner SUS304,stepless timing
29 cheese vat SUS304,with heating jacket and insising device
30 pressor SUS304,6 heads
31 mould SUS304,10L,with cover
32 yogurt fermentation unit
33 fermentation tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
34 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
35 plate cooler SUS304,single stage,milk discharge at 4C
36 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
37 filling unit
38 higher position tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
39 pasteurized milk filling machine
40 yogurt filling machine
41 CIP system
42 semi-auto CIP system outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
43 CIP return pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
44 installation part whole milk processing line installation and commissioning





Complete Soya Milk Production Line Making Machine 5

Complete Soya Milk Production Line Making Machine 6






Company information
Complete Soya Milk Production Line Making Machine 7
Complete Soya Milk Production Line Making Machine 8
Complete Soya Milk Production Line Making Machine 9


Our services
Complete Soya Milk Production Line Making Machine 10


Trade shows
Complete Soya Milk Production Line Making Machine 11


Certificate
Complete Soya Milk Production Line Making Machine 12


Packaging & Shipping
Complete Soya Milk Production Line Making Machine 13



FAQ


1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.



2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.



3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .



4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .



5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.


6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.



7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.



8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.



9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
