Syrup Preparation Automatic Industrial Mixing Tank With Agitator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Syrup Preparation Tank | Warranty | 12 Months/1 Year |
|---|---|---|---|
| Material | SUS304/SUS316L | Function | Milk Storage And Juice Storage |
| Agitator | Customized | Jacket Type | Miller Type |
| Electric Power Supply | 380V 50Hz/110V 60hz/415V 50Hz | Sea Port | Shanghai Port |
| Attachment | One PT100 Thermometer | ||
| High Light | Industrial Mixing Tank Syrup Preparation,Stainless Steel Tank With Agitator,Automatic Tank Agitators Industrial |
||
Product Description

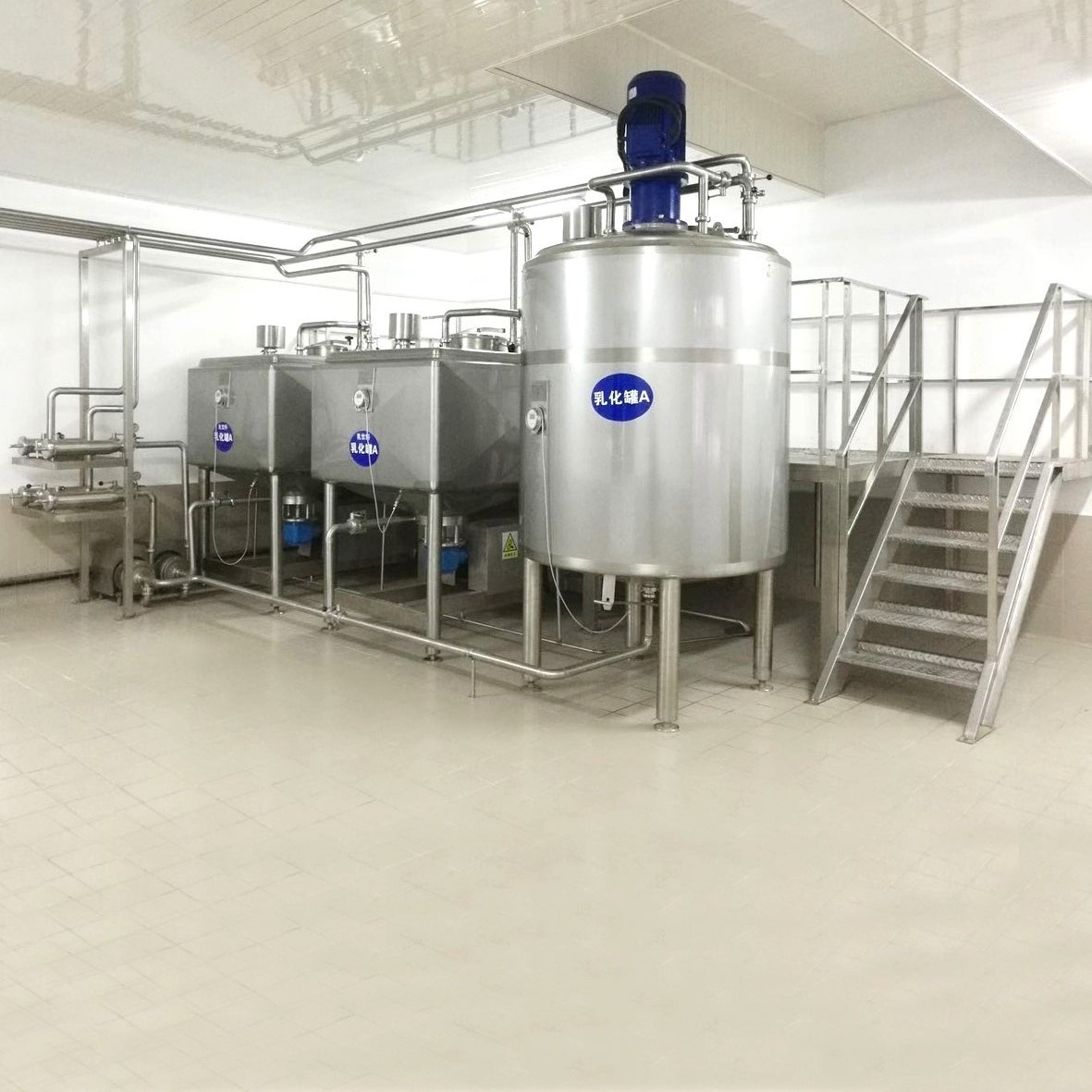

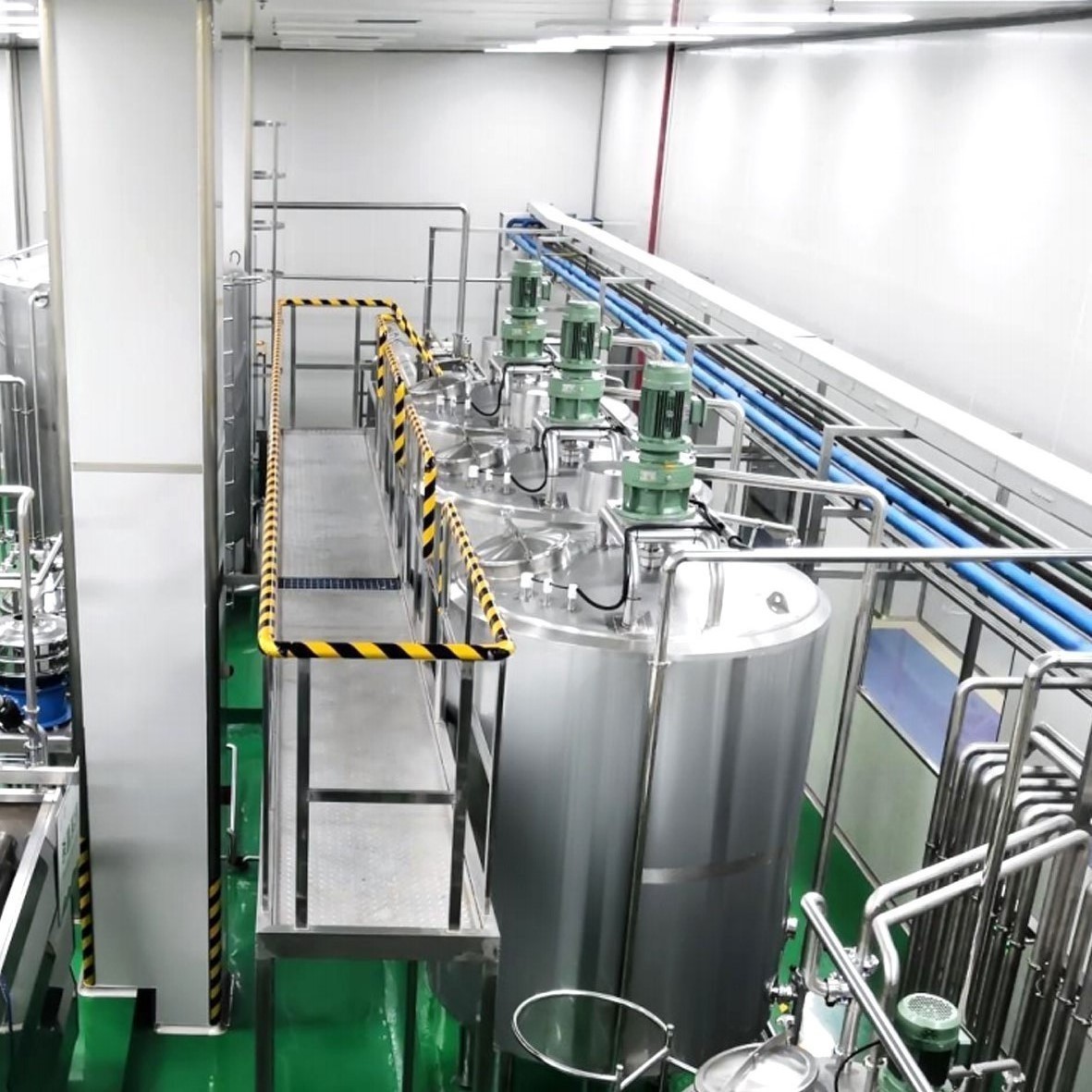

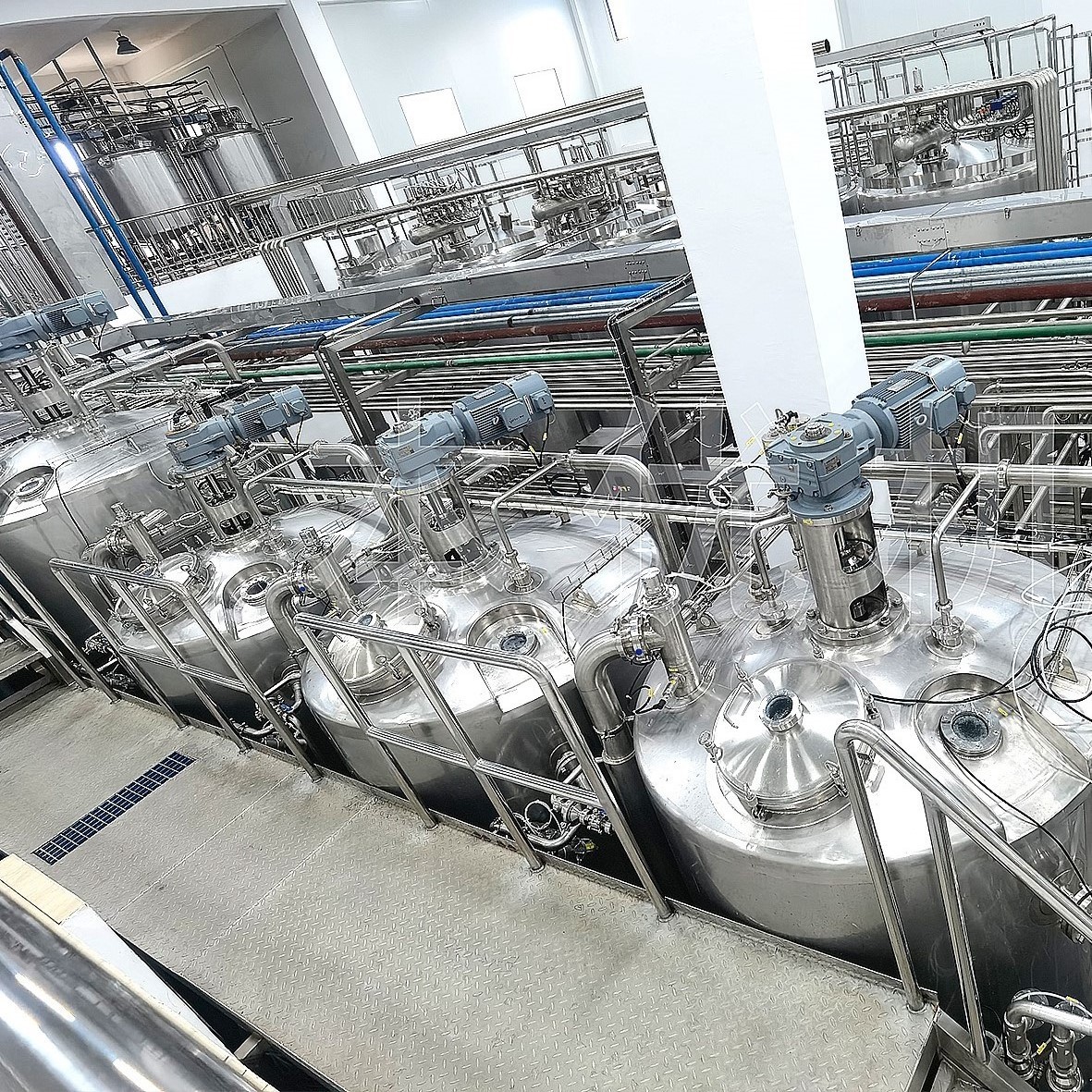

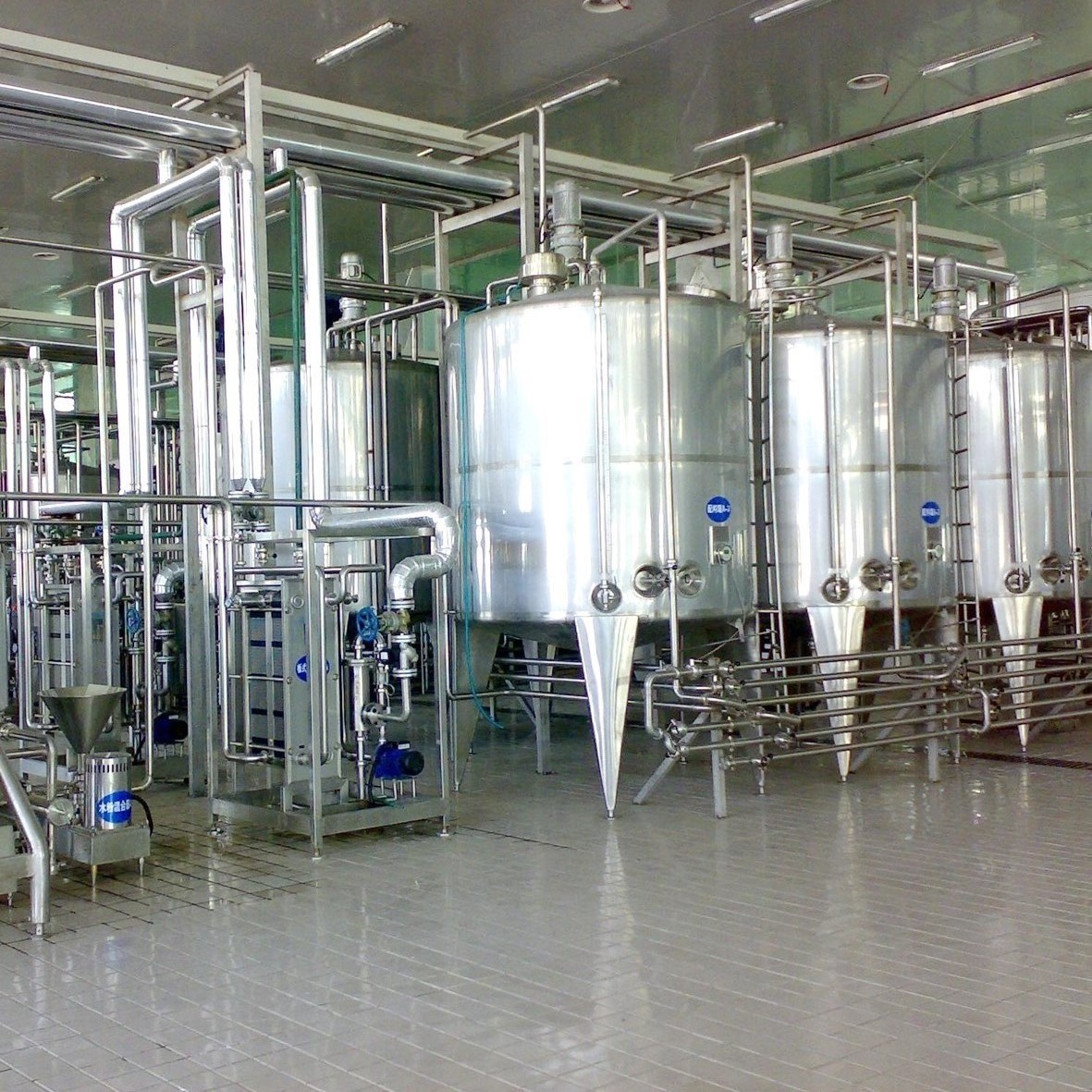

Syrup preparation tank automatic industrial mixing tank with agitator
The syrup preparation tank is mainly used in the food processing line. It can be used to store the liquid in food processing. The syrup preparation tank can add a mixing system, a cooling or heating system, or add auxiliary materials. The syrup preparation tank is made of high-grade stainless steel materials, which can meet the needs of food hygiene.
Details of syrup preparation tank:
Material: stainless steel
Brand: Beyond
Storage: syrup and various liquids
Appearance: Silver
Features: simple operation and powerful functions
Capacity 1000-10000 L, 10000-100000 L
Single layer tank ( with agitator or without agitator)
Usage: mainly applicable for storaging and mixing of all kinds of liquid products like: dairy products, juice, beer and brew, chemistry liquid , and biology engineering products, etc;
Specifications:
★Material: All material used is high quality sus304-2B stainless steel or SUS316, shell thickness δ=3-4mm
★Structure feature: normal construction (single layer), cylindrical shape, triangle or cylinder legs.
★Agitator types: with or without agitator; with agitator: wing agitator, anchor type, propeller type; frame type etc.;
Standard configuration
a). One air tight side manhole;
b). Anti butterfly and dirt air vent;
c). One PT100 thermometer, temperature range 0~100℃;
d). CIP cleaning ball;
e). Product inlet/outlet;
f). Discharge valve
g). Adjustable legs;
h). Sample valve
Technical parameter
| Model | Volume (L) | External diameter(mm) |
Height (mm) |
Plate thickness(mm) | Diameter of inlet/outlet |
| BYDG-500 | 500 | 800 | 2140 | δ3 | φ38 |
| BYDG-1 | 1000 | 1050 | 2380 | δ3 | φ38 |
| BYDG-1.5 | 1500 | 1180 | 2550 | δ3 | φ38 |
| BYDG-2 | 2000 | 1340 | 2760 | δ3 | φ38 |
| BYDG-2.5 | 2500 | 1420 | 2940 | δ3 | φ38 |
| BYDG-3 | 3000 | 1540 | 3050 | δ3 | φ38 |
| BYDG-4 | 4000 | 1650 | 3200 | δ3 | φ38 |
| BYDG-5 | 5000 | 1780 | 3250 | δ3 | φ38 |
| BYDG-6 | 6000 | 1900 | 3350 | δ3 | φ38 |
| BYDG-8 | 8000 | 2100 | 3800 | δ4 | φ65 |
| BYDG-10 | 10000 | 2300 | 4050 | δ4 | φ65 |
| BYDG-12 | 12000 | 2520 | 4450 | δ4 | φ65 |
| BYDG-15 | 15000 | 2540 | 4700 | δ4 | φ65 |
Application of syrup preparation tank
We provide syrup preparation tanks for the food and beverage industry for mixing, processing, storage, cleaning, treatment, etc. Our design and manufacturing expertise is combined with world-class manufacturing equipment to ensure the hygienic quality and long-life performance of your syrup preparation tank.
We are one of the major manufacturers, suppliers, traders and exporters of syrup preparation tanks. These syrup preparation tanks are developed and designed with advanced raw materials according to the specifications and guidelines specified by the industry. We design and manufacture syrup preparation tanks according to customers' needs. Our after-sales engineers will assist customers in the installation and commissioning of syrup preparation tanks, so that customers can put the syrup preparation tanks into production in the shortest time. Our customers are all over the world, and they have achieved remarkable success in their respective industries.
