Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L

Place of Origin China
Brand Name Shanghai Beyond
Certification SGS/CE/ISO9001
Model Number BYDG-2
Minimum Order Quantity 1set
Price negotiation
Packaging Details standard package
Delivery Time 35-60 working days upon receipt of payment and confirmed the drawings
Supply Ability 50 pcs per month
Product Details
Product Name Food Grade Industrial Mixing Tank Warranty 12 Months/1 Year
Material SUS304/SUS316L Function Milk Storage And Juice Storage
Agitator Customized Jacket Type Miller Type
Electric Power Supply 380V 50Hz/110V 60hz/415V 50Hz Sea Port Shanghai Port
Attachment One PT100 Thermometer
High Light

Industrial Stainless Steel Mixing Tank

,

Food Grade Industrial Mixing Tank

,

Stainless Steel Vertical Mixing Tank

Leave a Message
Product Description

Food grade industrial mixing tank automatic industrial stainless steel mixing tank

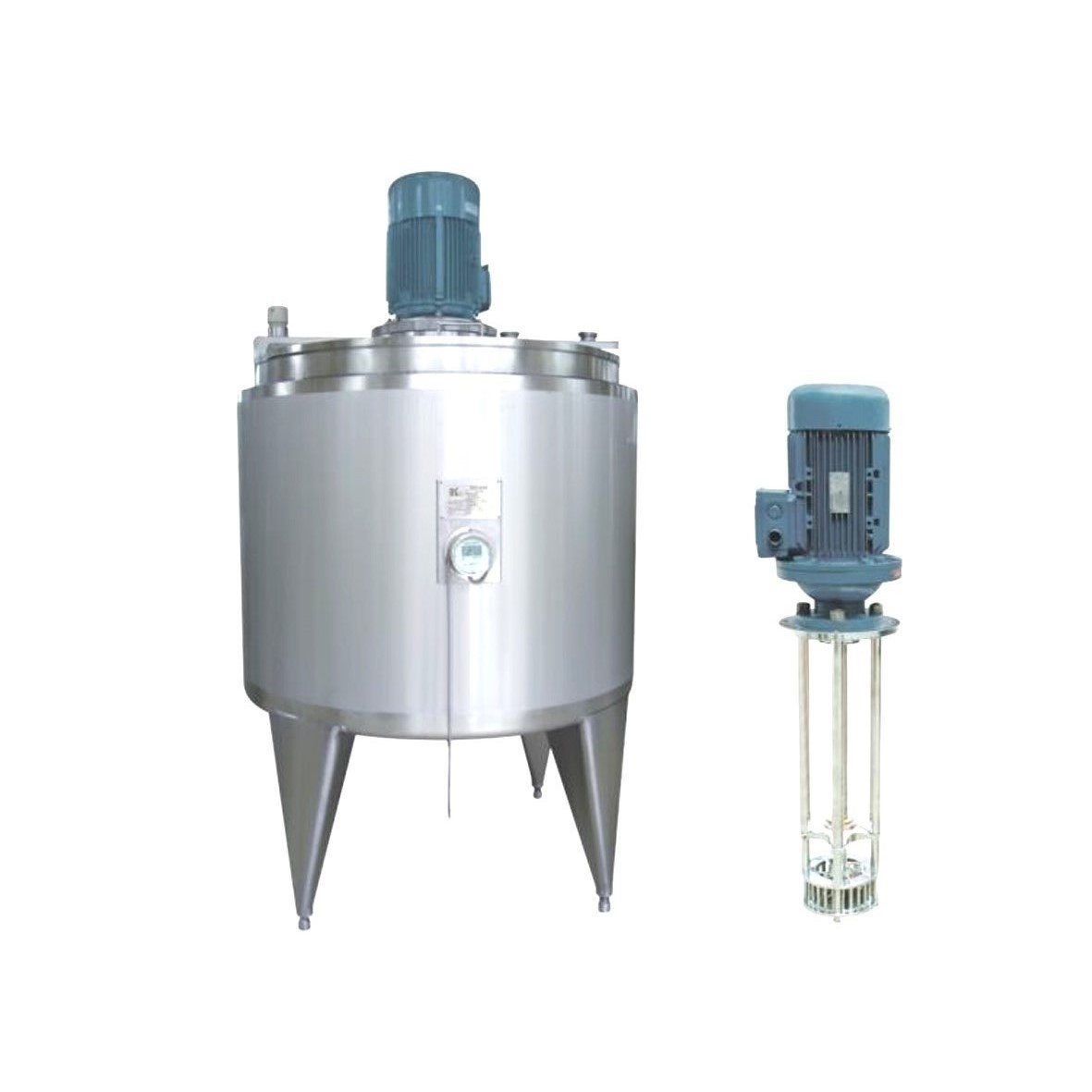

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 0



Mixing tank is widely used in dairy processing line and chemical industry. Through mixing tank, a variety of different elements can be mixed to obtain a fixed proportion of liquid. The mixing tank can be used for mixing, heating, cooling and other functions, so as to better mix liquid and liquid, liquid and solid.



Mixing tank details:

Application: food, chemical industry and medicine

Material: stainless steel

Storage: water, dairy, chemicals / oil

Capacity: 1000-10000 L

Brand: Beyond



The mixing jar can be used to mix fruit juice, nectar and any other fruit beverage.

We offer different batches, continuous mixing and mixing systems.

Our mixing technology focuses on achieving the best mixing and ingredients of different ingredients.

In order to achieve fully automated production and intermediate storage, it is necessary to automate the process tank and storage system.

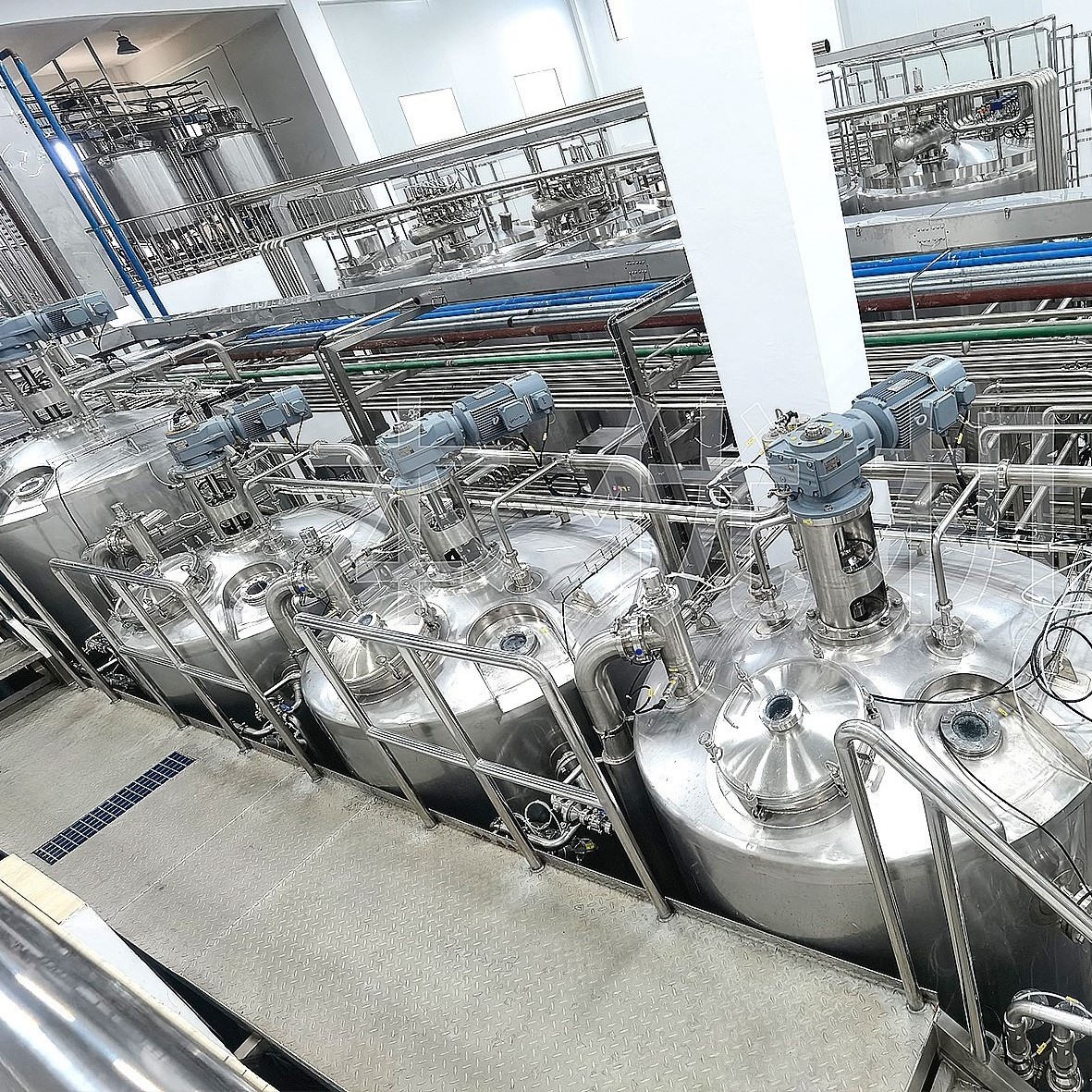

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 1



Single layer tank ( with agitator or without agitator)

Usage: mainly applicable for storaging and mixing of all kinds of liquid products like: dairy products, juice, beer and brew, chemistry liquid , and biology engineering products, etc;

Specifications:

★Material: All material used is high quality sus304-2B stainless steel or SUS316, shell thickness δ=3-4mm

★Structure feature: normal construction (single layer), cylindrical shape, triangle or cylinder legs.

★Agitator types: with or without agitator; with agitator: wing agitator, anchor type, propeller type; frame type etc.;

Standard configuration

      a). One air tight side manhole;

b). Anti butterfly and dirt air vent;

c). One PT100 thermometer, temperature range 0~100℃;

d). CIP cleaning ball;

                   e). Product inlet/outlet;

                   f). Discharge valve

      g). Adjustable legs;

      h). Sample valve

Technical Parameter:

Model

Volume

(L)

Inner diameter

(mm)

Total height (mm)

Shearer Motor

power (KW)

Mixer speed

(r/m)

RHTY-600 600 800 2140 7.5 2900/1450
RHTY-1000 1000 1050 2380 11 2900/1450
RHTY-1500 1500 1180 2450 15 2900/1450
RHTY-2000 2000 1340 2760 18.5 2900/1450
RHTY-3000 3000 1540 2870 22 2900/1450

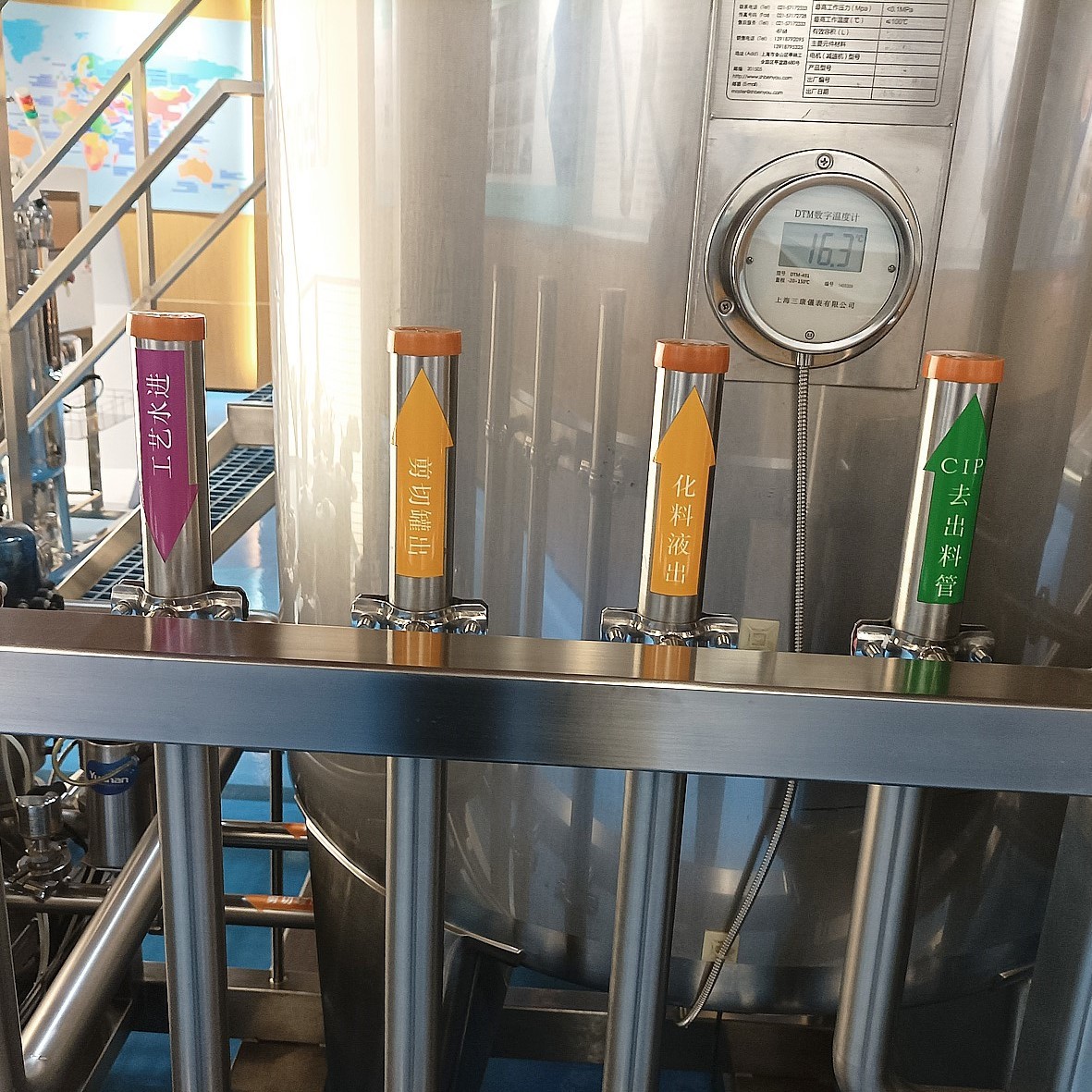

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 2

Over time, this reduces production losses and ensures the same formulation.

In batch mixing, the product is mixed in bulk, and all other ingredients are added again and again.



In continuous mixing: the ingredients are mixed directly in the pipeline; The utility model comprises a dosing pump and an in-line mixing treatment agent for product uniformity.



Depending on the work task to be processed, one or another system will be selected.

For companies that need to carry out a large number of product transformation, it is more recommended to adopt batch mixing; Or the products to be mixed come from small packages or dry matter.

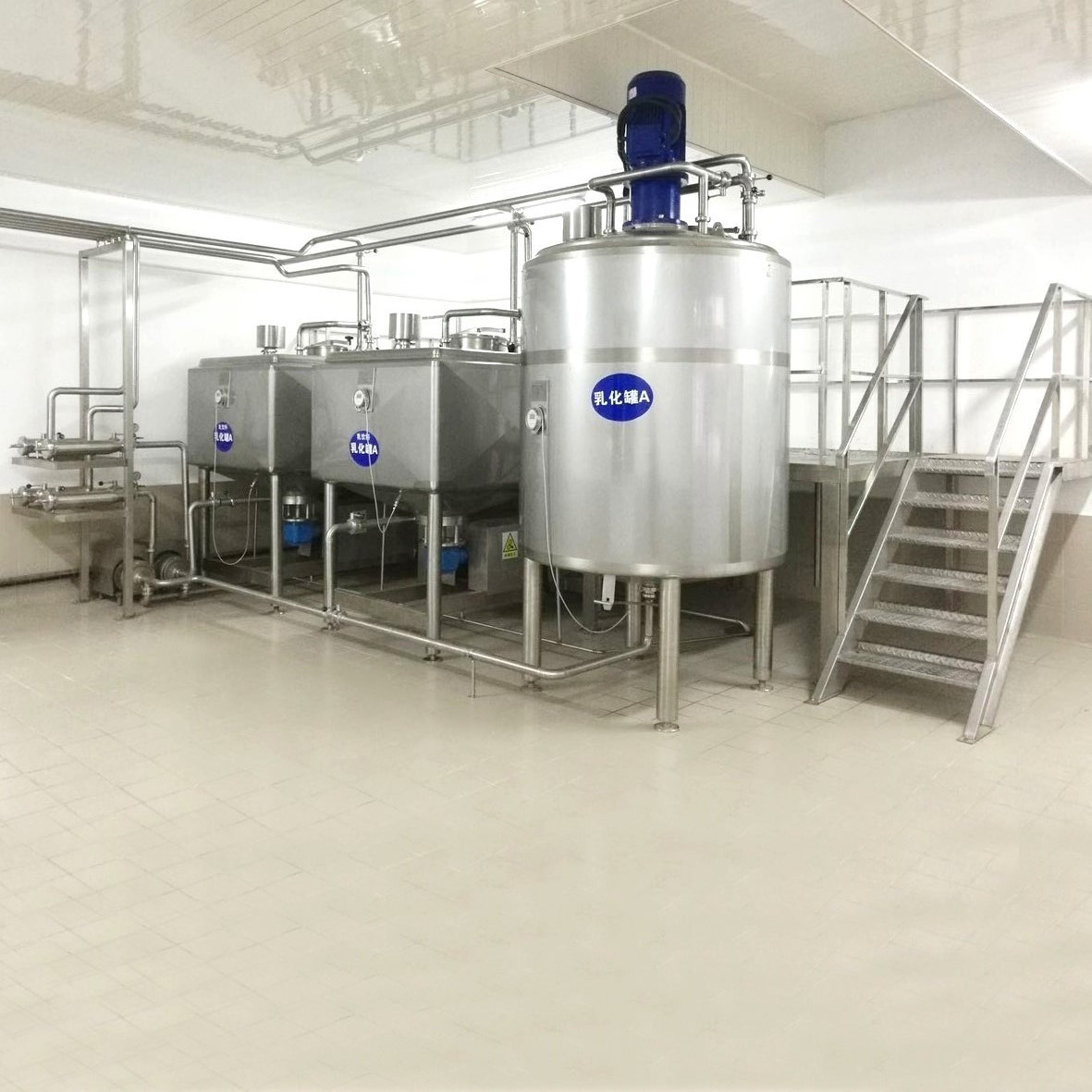

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 3

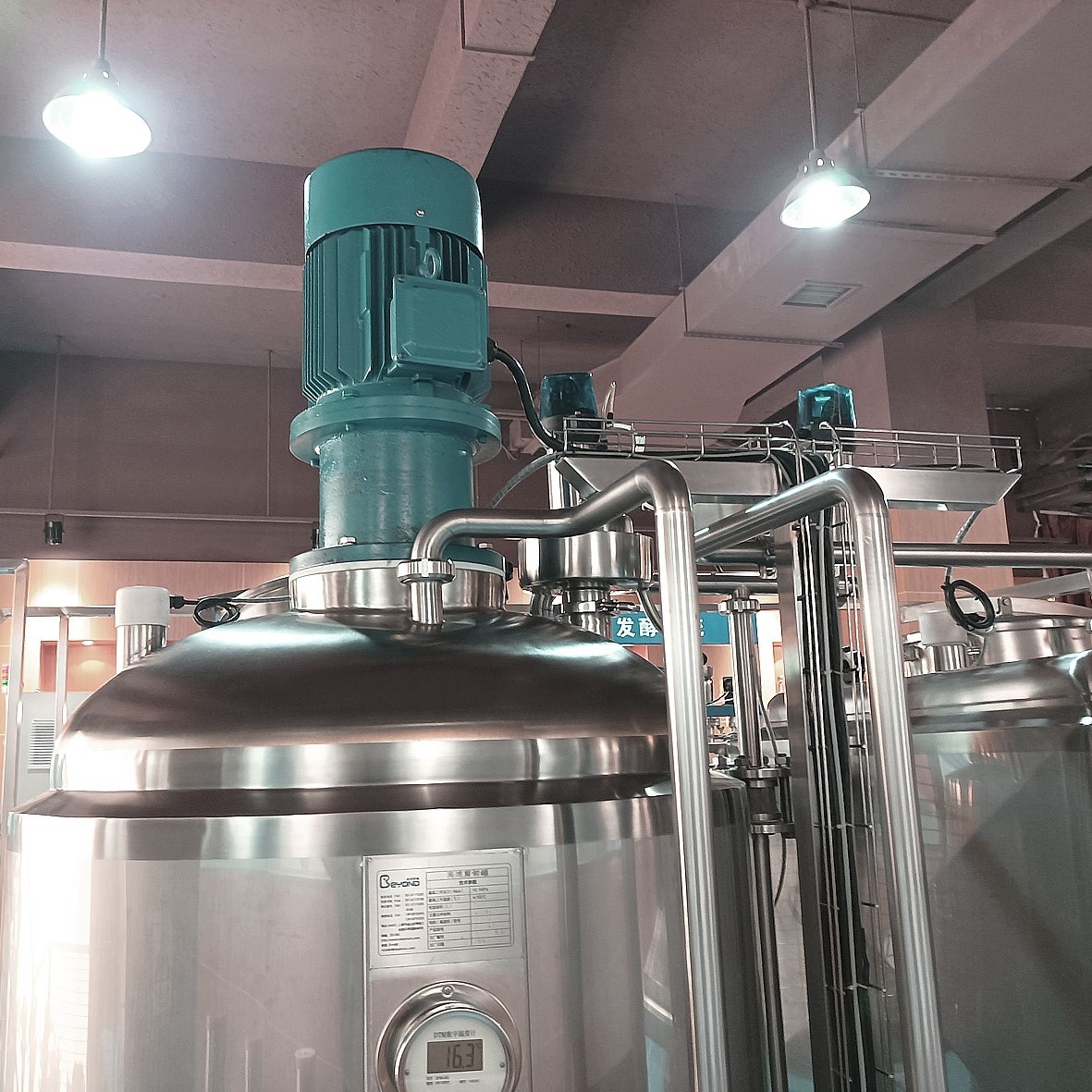

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 4

Industrial Stainless Steel Mixing Tank Food Grade 380V 10000L 5



It is recommended to carry out continuous mixing in the case of large capacity, in which the ingredients used in the production of beverages are mixed directly online, which requires more complex and automated technology.



These mixing systems are mainly used in the fruit juice processing industry, where mixtures of various ingredients are usually used to produce fruit juices with multiple flavors.



In the continuous mixing phase, water is mixed with syrup or formula product. The liquid flows through the separated pipeline, is measured and controlled by an independent flowmeter, and is compared by a digital controller to achieve the required mixing ratio.



These formulated products consist of different ingredients (up to 30 different ingredients) in batches ranging from 1000 kg to 100000 kg.



The mixing tank can be designed and manufactured according to the needs of customers, so that the performance of the mixing tank can fully meet the needs of customers. Our after-sales engineers will assist customers in installation and commissioning to ensure that customers can put the mixing tank into use in the shortest time. Our customers are all over the world, and they have achieved remarkable success in different industries.
