Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre

Place of Origin China
Brand Name Shanghai Beyond
Certification SGS/CE/ISO9001
Model Number BYDG-3
Minimum Order Quantity 1set
Price negotiation
Packaging Details standard package
Delivery Time 35-60 working days upon receipt of payment and confirmed the drawings
Supply Ability 50 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Storage Tank Warranty 12 Months/1 Year
Material SUS304/SUS316L Function Milk Storage And Juice Storage
Agitator Customized Jacket Type Miller Type
Electric Power Supply 380V 50Hz/110V 60hz/415V 50Hz Sea Port Shanghai Port
Attachment One PT100 Thermometer
High Light

Stainless Steel Storage Tank 10000 Litre

,

Miller Industrial Storage Tank

,

Automatic Industrial Water Tank SUS304

Leave a Message
Product Description

Stainless steel storage tank automatic industrial 10000 litre stainless steel water tank price

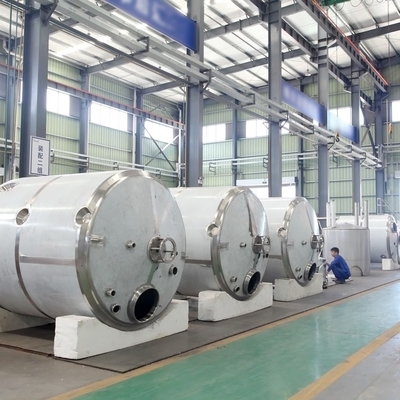

Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 0
Stainless steel storage tanks have many applications in the field of food processing lines. Stainless steel storage tanks can be used as important containers for storing liquid food and water. Stainless steel storage tanks can also be transformed into different types of liquid material containers such as mixing tanks and fermentation tanks through technical transformation. In the food production line, CIP cleaning system also requires a large number of stainless steel tanks.

Stainless steel tank details:
Capacity: demand dependent
Function: storing liquids
Material: SS 304/316
Color: Silver
Direction: horizontal, vertical
Advantages: multifunction and simple operation
Brand: Beyond
Power: demand dependent
Voltage: 220 / 415 V
Automatic: fully automatic
Diameter: as required
Temperature: meet requirements

Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 1
Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 2

Condition new
·The storage tank can be used to store liquids, such as water and fruit juice, for a longer time or temporarily.
·The optimum thickness of the tank is determined according to the design calculation and the required capacity of the rectangular container for storing fluid.
·The support is designed to withstand the applied fluid force and the dead weight of the tank.
·The size of the container depends on the required fluid capacity in the tank.
·If required, the thickness of the insulation depends on the fluid temperature / volume in the reservoir.
·As required, thermometers, pressure gauges, valves, level switches and various other accessories are installed on the top of the oil tank.
·The system is equipped with CIP device or spray ball device to clean the storage tank with liquid and prepare for the next operation cycle.
·The tank is equipped with manhole for easy maintenance.
·The complete oil tank has high corrosion resistance.
·This can is used in the food, pharmaceutical and chemical industries.
·Vessel diameter required to design fluid capacity as required.

Standard configuration

       a). One air tight side manhole;

b). Anti butterfly and dirt air vent;

c). One PT100 thermometer, temperature range 0~100℃;

d). CIP cleaning ball;

e). Product inlet/outlet;

f). Discharge valve

       g). Adjustable legs;

       h). Sample valve
Technical parameter

Model Volume (L) External diameter(mm)

Height
(mm)

Plate thickness(mm) Diameter of inlet/outlet
BYDG-500 500 800 2140 δ3 φ38
BYDG-1 1000 1050 2380 δ3 φ38
BYDG-1.5 1500 1180 2550 δ3 φ38
BYDG-2 2000 1340 2760 δ3 φ38
BYDG-2.5 2500 1420 2940 δ3 φ38
BYDG-3 3000 1540 3050 δ3 φ38
BYDG-4 4000 1650 3200 δ3 φ38
BYDG-5 5000 1780 3250 δ3 φ38
BYDG-6 6000 1900 3350 δ3 φ38
BYDG-8 8000 2100 3800 δ4 φ65
BYDG-10 10000 2300 4050 δ4 φ65
BYDG-12 12000 2520 4450 δ4 φ65
BYDG-15 15000 2540 4700 δ4 φ65



The following types of tanks shall be manufactured as required:
1. Horizontal storage tank (with / without insulation).
2. Vertical storage tank (with / without insulation).
3. Stainless steel rectangular tank.
The storage container can be customized according to the needs.

features:
·The stainless steel is 304/316 stainless steel.
·Compact design.
·Holding tank.
·Leak proof water tank.
·Easy to maintain.
Additional information:
Production capacity:-
Delivery time: 2-3 months
Packing details: wooden case


Minimum Order Quantity: One set/one line
Price: negotiation
Payment Terms: T/T or L/C
Supply Ability: 50 Sets Per Season
Delivery Time: 50-100 working days upon receipt of payment and confirmed the drawings
Packaging Details: PE film wrapping, or carbon steel frame packing, or wooden case packing as to clients’ requirement
Warranty 12 months after commissioning


After sales service

Engineers available to service machinery overseas


Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 3

Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 4
Industrial Automatic Stainless Steel Water Storage Tank Miller Type 10000 Litre 5


Stainless steel tanks can be designed and manufactured according to customers' needs, so that stainless steel tanks can fully meet customers' requirements. Professional after-sales engineers will assist customers in installation and commissioning to ensure that customers put stainless steel storage tanks into use in the shortest possible time. Our stainless steel storage tank customers are all over the world, and they have achieved remarkable success in their respective fields.
