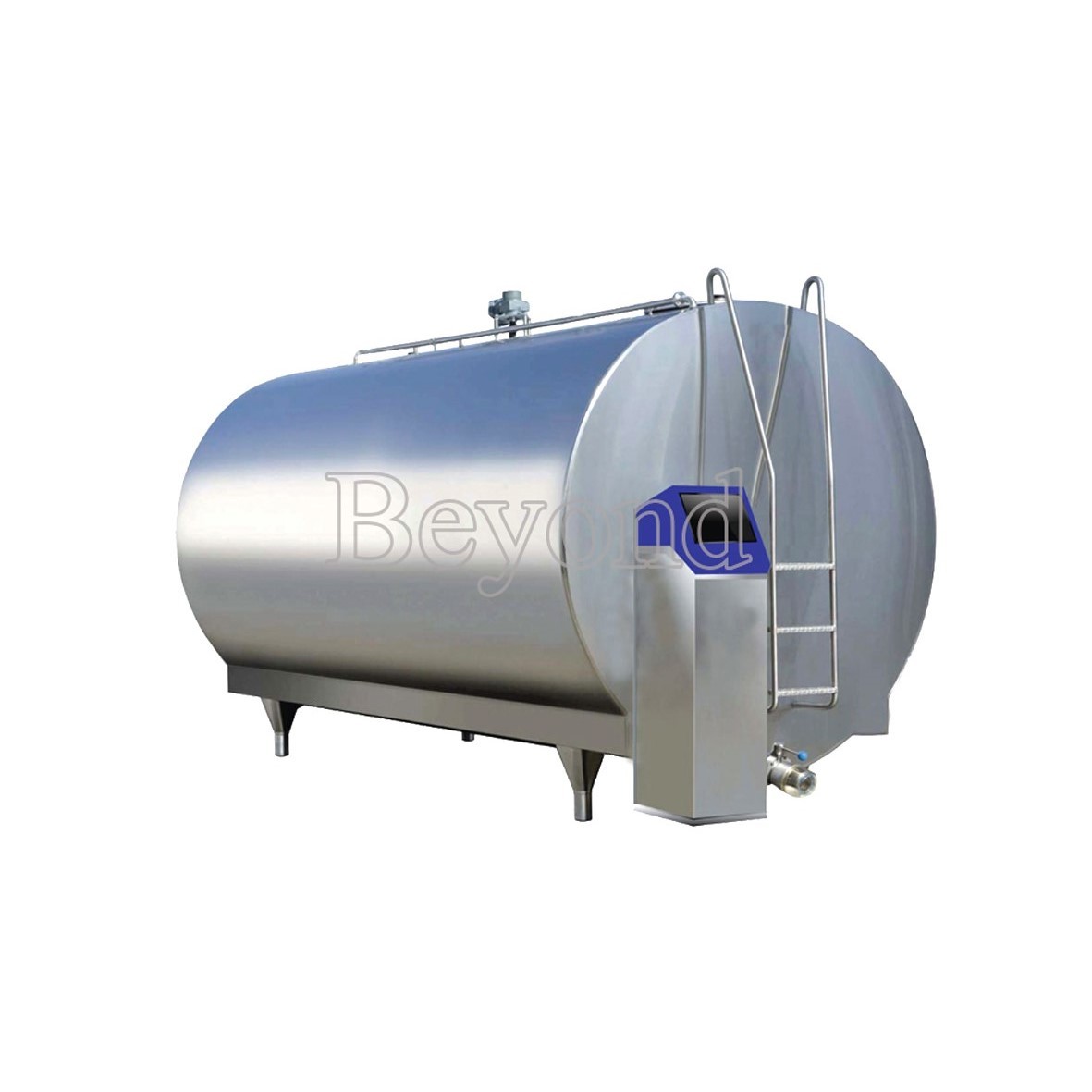

10000l Stainless Steel Cooling Tank For Milk SUS316L

Place of Origin China
Brand Name Shanghai Beyond
Certification SGS/CE/ISO9001
Model Number BY-CT
Minimum Order Quantity 1 piece
Price negotiation
Packaging Details export standard package
Delivery Time 35-50 working days upon receipt of payment and confirmed the drawings
Supply Ability 50 pcs per month
Product Details
Product Name Cooling Tank For Milk Material SUS304/SUS316L
Function Cooling And Storage For Fresh Milk Capacity Customized
Diameter 500l~8000l Advantage Easy To Operate
Application Beverages, Cosmetics, Dairy Products, Food And Pharmaceuticals
High Light

SUS316L Milk cooling tank

,

10000l Stainless Steel Milk Tank

,

Stainless Steel Cooling Tank For Milk

Leave a Message
Product Description

Milk tank for sale 10000l 5000l stainless steel cooling tank for milk



10000l Stainless Steel Cooling Tank For Milk SUS316L 0





We manufacture stainless steel tanks, process tanks and integrated mixing systems for a variety of industries.

We specialize in providing services to a number of important industries worldwide, including beverages, cosmetics, dairy products, food and pharmaceuticals.



The milk cooling tank is made of high-quality stainless steel AISI304 and AISI316.

All our products are designed and manufactured with excellence and perfection. We guarantee first-class customized technology and first-class customer service.

Milk cooling tanks are produced with tank capacities ranging from 100 litres to 50000 litres.



10000l Stainless Steel Cooling Tank For Milk SUS316L 1



Significantly reduce the cost of milk cooling
Cooling is optimized to the level of milk in the tank. Excellent thermal performance means that if you don't have electricity all day and the milk temperature changes <0.5 ° C, you can save money. Using our night mode function, you can further save up to 25% of the annual cooling cost.


The best tank
We use thicker steel as the standard, which has higher insulation than other steels on the market.


Easy to use controls
Beyond provides you with ultimate control, such as large LCD screen, quick start button, milk level measurement, night mode and so on. This new smartphone two-way app lets you know your tank at any time.


Faster and cleaner cleaning
The cleaning system is designed to provide powerful, thorough and fast cleaning. The cleaning system is tested by fluorescence testing technology to ensure the complete reliability of the cleaning system design. The powerful large capacity cleaning pump ensures that it can be cleaned quickly with the press of a button.


Lifetime information
With the available reports, you can display many events of the tank, including keyboard entries, alarms, and other events of the tank.


Faster cooling
Using the customized condensing unit, the cooling time can be shortened by 11% compared with the existing cooling time on the market, thus greatly reducing the cooling cost, 13% lower than the standard unit.


Advanced temperature measurement
The intelligent design of the water tank means that we can measure the temperature of milk instead of the temperature of steel, thus saving up to 10% of the cooling cost.


Connected farm
With dairymaster, you can update your water tank remotely, ensure that you always have the latest technology, save time, and cancel on-site visits.



Technical Parameter:

Model Volume(L) Rating power(kw) Refrigeration capacity(w) External size Total weight
BZLG-500 500 3.6 7380 1750*1150*1300 242
BZLG -1 1000 4.4 9280 1950*1350*1450 285
BZLG -2 2000 6.7 15820 3950*1550*1750 460
BZLG -3 3000 9 19534 3500*1650*1850 645
BZLG -5 5000 13.6 31640 4000*2050*2150 1150
BZLG -8 8000 19.6 47460 4700*2300*2400 1450



10000l Stainless Steel Cooling Tank For Milk SUS316L 2





Technical Parameter:

Tank volume 2000L, 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 20000L
Temperature -20℃~+40℃, liquid temperature:4+/-1°, temperature difference ≤ 2℃.
Standard configuration



Quick-opening sealed manhole, breathing valve, CIP cleaning pipes, material inlet (with valve)

Material SUS 304, Food hygiene grade silicone ring for seal
Dimension According to the size of truck chassis provided by customer





10000l Stainless Steel Cooling Tank For Milk SUS316L 3

10000l Stainless Steel Cooling Tank For Milk SUS316L 4






Company information

10000l Stainless Steel Cooling Tank For Milk SUS316L 5

10000l Stainless Steel Cooling Tank For Milk SUS316L 6

10000l Stainless Steel Cooling Tank For Milk SUS316L 7


Our services

10000l Stainless Steel Cooling Tank For Milk SUS316L 8


Trade shows

10000l Stainless Steel Cooling Tank For Milk SUS316L 9


Certificate

10000l Stainless Steel Cooling Tank For Milk SUS316L 10


Packaging & Shipping

10000l Stainless Steel Cooling Tank For Milk SUS316L 11




FAQ



1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.



2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.



3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .



4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .



5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.


6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.



7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.



8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.



9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
