Multi Stage SUS316 Stainless Steel Tanks With Jacket Temperature Control

Place of Origin Shanghai China
Brand Name Beyond
Certification ISO/CE
Model Number 10L-100L-1000L ,20L-200L-2000L、30L-300L-3000L、50L-500L-5000L
Minimum Order Quantity 1 set
Price negotiation
Packaging Details standard exported package
Delivery Time 35-60 working days
Supply Ability 100 pcs per month
Product Details
Name Stainless Steel Multi-stage Seeds Tank Fermentation Tank Biological Tank Material Stainless Steel
Voltage According To Customer Local Voltage Power Consumpiton Energy Saving Type
Warranty 12 Months Sea Port Shanghai Port
High Light

chocolate melting tank


food grade tank

Leave a Message
Product Description

stainless steel multi-stage seeds tank fermentation tank biological tank

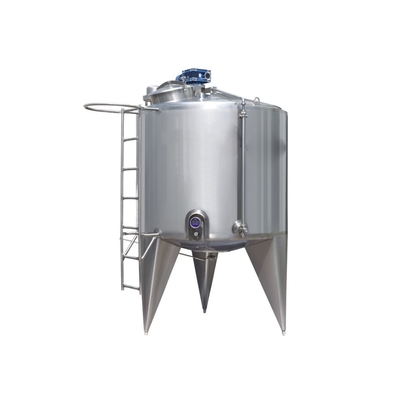

Multi Stage SUS316 Stainless Steel Tanks With Jacket Temperature Control 0

Nominal volume: 10L-100L-1000L ,20L-200L-2000L,30L-300L-3000L,50L-500L-5000L,100L-1000L-10000L

Liquid loading coefficient: ≥70%

Tank configuration :

Stainless steel SUS316/SUS304;

Jacket temperature control,optimized diversion design;

Interior surface polishing ,Ra≤0.6μm;exterior surface polishing or matte treatment;

Wide visual angle long-bar sight glass,PH electrode ,DO electrode,temperature electrode with complete connections;

The tank cover is equipped with the flame inoculation port and standby feeding port.

Stirring system

Top mechanical stirring system , aseptic mechanical seal system , DC stirring motor or AC motor;

Standard configuration 2-layer flat vane , first-class high-efficiency defoaming vane , bending vane and axial flow vane are optional;

Available frequency speed control, digital setting of rotation speed control.

Structure mode

Floor type structure with reasonable and compact layout, space saving , easy operation ; steel operation platform.

Ventilating system

Deep ventilating ,full stainless steel pipe;

Glass rotor flowmeter display , pressure gauge display , manual valve flow adjustment;

Equipped with German Sartorius high-efficiency bacteria removing filter of stainless shell with a precision of 0.01μm;

External compressed air is required , equipped with high quality water removing pressure stabilizer for continuous and stable air supply;

The mass flow controller is optional to automatically control air flow.

PH control

Online inspection , 2-way peristaltic pump automatic incremental feeding of acid or alkali solution for adjustment;

Imported PH electrode realizes high temperature steam disinfection.

Dissolved oxygen(DO)

Online inspection , with a range of 0-100% or 0-200%;

Imported DO electrode realizes high temperature steam disinfection;

Optional , linked control with rotation speed and ventilation.

Feeding control

Standard configuration 1-way peristaltic pump time proportional incremental feeding , with the volume of incremental feeding being displayed and recorded.

Defoaming mode

Conducting type foam electrode , automatic alarming in case of abnormal foam situation;

Standard configuration 1-way peristaltic pump automatic/manual incremental feeding of defoaming agent , with the volume of incremental feeding being displayed and recorded.

Control system

Application industrial level control system . Siemens PLC controller true color touch screen with complete functions and stable running .

Sterilizing mode

SIP , manual control, need external connection to saturated steam.

Equipment features

SIP , safe and reliable;

Wide visual angle vertical sight glass with clear observation;

It adopts the special mechanical seal for fermenting , imported sanitary aseptic diaphragm valve and the pipe adopts the full-position automatic welding process;

The imported fast visual inspection and treatment system is adopted in the whole process within the workshop , including sampling . There is no steam leakage during production , empty tank sterilization , filled tank sterilization and sampling;

Products of special specifications can be made to order;

Inoculation pipe SIP without dead corner . Inoculation at the next stage can be carried out .


1.Multi-way feeding

2.Automatic sterilization

3.Weighing of fed materials

4.Tank body weighing

5.Rich oxygen bypass

6.ORP online inspection

7.Air flow automatic inspection and control

8.Tail gas O2,CO2 content online inspection

9.Methanol (alcohol) content online inspection

10.Tank cover automatic hoisting device.
